200W VAWT Maglev Wind Turbine with Solar Panel for 45W LED Street Light

200W VAWT Maglev Wind Turbine with Solar Panel for 45W LED Street Light

Quick Detail

1. Direct drive, no mechanic friction

2. Savonius Turbine and Darrieus Turbine are combined, perfect work in breeze and strong wind

3. Start up at 1.0 m/s, cut in wind speed 2.5 m/s

4. Lightning rod built in wind turbine body

5. Beautiful for the LED street lighting system and the city

6. No pollution, no carbon

Description

TYPMAR maglev wind turbine have 6 models, 200W, 300W, 400W and 600W, 1KW, 3KW are for hybrid street lighting, home use, telecom station or any place need independent power.

Our 200W Maglev wind turbine mainly designed for hybrid street lighting use, the wind turbine is easy starting up, light weight and small in size. While the hybrid street lighting system installed, you can find it’s a beautiful view for the urban city as well as the following benefits.

Environment:

​• Zero emission

• Synergy with Solar and Geothermal systems

• Dual colors make it easy for bird identification in order to prevent collisions (Animal-friendly)

Installation:

• Easy Installation: System can be assembled within one hour

• No welding

• Single or multiple unit connection for bigger power production

• Easy connection with PV systems

Design:​

• Gearless design: no need to replace worn-out or broken gear

• Brushless: motor brushes making high failure items results in regular replacements

• Bearing-free design: no need to lubricate or to replace worn-out bearings

• Magnetic levitation design: reduces rotational resistance to enhance power generation as well as prolong the turbine life.

• No yaw or furling mechanism required: allows for peak power output at any wind speed

• No cogging torque for cutting-in at low wind speed

• Direct-drive: Extends product life

• Blades can start rotating at very low wind velocity of 2.2 mph (1 m/s)

• Space-saving, aerodynamic airframe

• Heavy duty and industrial level construction

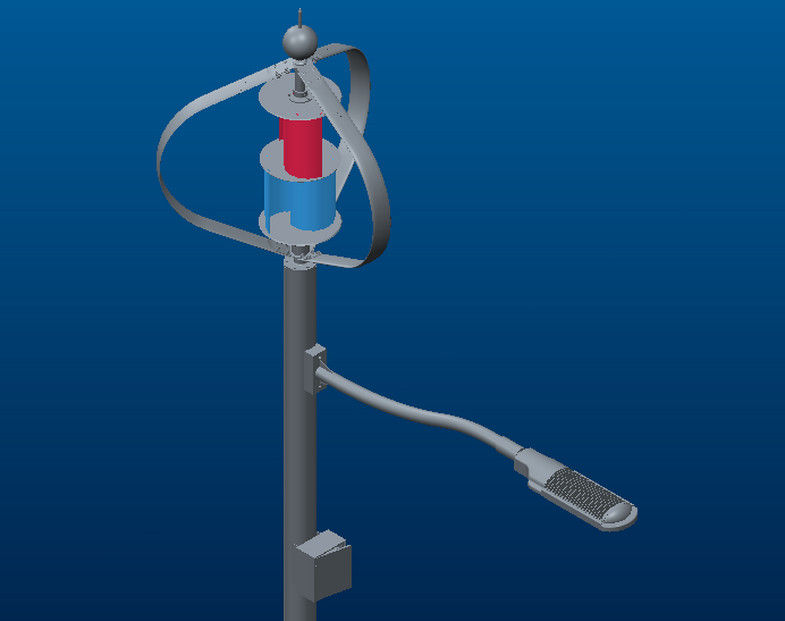

 Wind Solar Hybrid Street Light System With Doulbe LED Lamps

Control:

• Intelligent control system has automatic protective functions to lower rotational speed in case of so strong wind as hurricane

• Real-time remote monitoring system can monitor and acquire data and equipment performance

Technical Specification

TYPE NO                 CXF-200

Rated Power              200W

MAX Power                215W

Rated    Speed           13 m/s

Cut-Out  Speed           16 m/s

Survival Speed           60 m/s

Star-up Speed            1 m/ s

Cut-out Speed            2 m/s

Maximum RPM              700 RPM

Body/Blade             Aluminum Alloy/Galvsteel(SS400)

Qty of Blades           7(3darrieus and 4 Savonius

Rotor Diameter           Φ1115mm

Height of turbine        1035mm

Generator                AC 3 phase Synchronism PMG

Rated output Voltage      DC12

Controller output Current (Max) 12A/12V

Turbine Warranty         two years

Ambient Temperature Range-30 ~ 50℃

Ambient Humidity          95% Max

Turbine Weight            22.5 KG

Package Size            1010*460*420mm

Why to choose TYPMAR wind turbine ?

The CXF series of maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple subjects to have the following features:

• Magnetic levitation technology
• Independent of the direction of the wind
• Startup at low wind speed of 1m/s
• Higher efficiency compared to traditional HAWT
• Works even in turbulence
• Visually pleasing appearance
• Turbine construction is resistant to gale 60m/s (132MPH)
• Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
• Design life: at least 20 years
• Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
