| Shape features | stainless steel casing/black aluminum shell and color touch screen |
| Dimension | 130*128*200mm |
| Net weight | 1.18kg |
| Printing direction | adjusted within 360 degree, meet all kinds of production needs |
| Character type | high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English |
| Printing pictures | all kinds of logo, pictures can be uploaded through USB disk |
| Printing accuracy | 600DPI |
| Printing line | 1-8 lines (adjustable) |
| Printing height | 1.2mm-12.7mm |
| Print code | bar code, QR Code |
| Printing distance | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm) |
| Print serial number | 1~9 |
| Automatic print | date, time, batch number shift and serial number, etc |
| Storage | the system can store more than 1000 mass (external USB make the information transfer in a free way) |
| Message length | 2000characters for each message, no limitation on length |
| Printing speed | 70m/min |
| Ink type | Quick-dry environmental ink, water-based ink and oily ink |
| Ink color | black, white, red, blue, yellow, green, invisible |
| Ink volume | 42ml(usually can print 800,000 characters) |
| External interface | USB, DB9, DB15, Photoelectric interface, can directly insert a USB disk to upload information |
| Voltage | DC16.8 lithium battery, print continuously more than 10 hours and 20 hours standby |
| Control panel | touch-screen (can connect wireless mouse, can also edit information through the computer) |
| Power consumption | the average power consumption is lower than 5W |
| Working environment | Temperature:0 - 38 degree; Humidity: 10% - 80% |
| Printing material | board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc.
|
Main Advantage:
1, International design, imported core components and consumables.
2, IP54 protection grade, steady performance under poor working condition.
3, 300DPI high definition.
4, Modularized ink cartridge and print-head.
5, 32-bit Linux operating system (5 piece of CPU chip)
6, 4.3-inch touch screen operation system.
7, Upgrade system freely during lifetime.
8, Built-in graphics editor, editing LOGO easily.

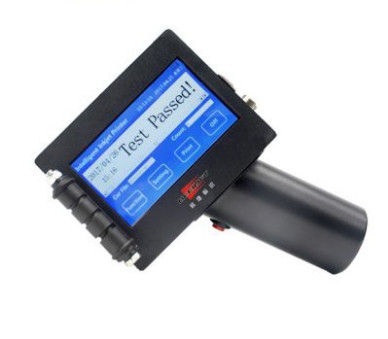

Main View:
Detailed View
Detailed Packing
Size(cm) | G.W(kg) | Remarks |
| Outside | 35*28*20 | 3.5 | Cardboard box packing |
| Inside | 32*23*16 | 2.65 | Exclusive custom metal suitcase |
| | Support customized packing |
| Single packing | Item | Pc/pcs | |
| M3 inkjet printer | 1 | Standard packing |
| Charger | 1 | Standard packing |
| USB disk | 1 | Standard packing |
| Touch pen | 1 | Standard packing |
| Press Button | 1 | Standard packing |
| Rubber rings | 8 | Standard packing |
| Ink cartridge | 1 | Optional match (Extra charge) |
| Sensor bracket | 1 | For online printing (Extra charge) |
| Conveyor belt | 1 | For online printing (Extra charge) |
Application View
