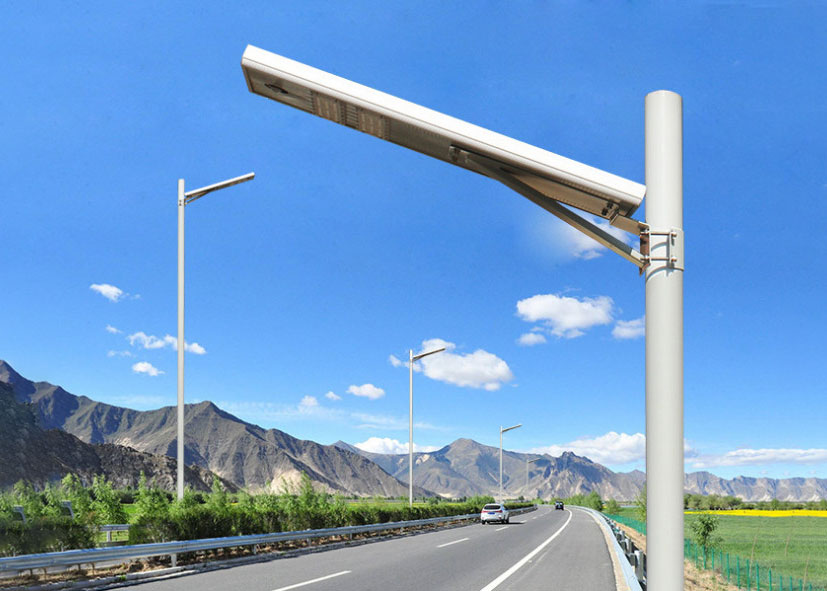

All in One Solar LED Street Light Motion Sensor 15W 25W 30W With Lithium Battery
Feature
1, ALL in one integrated design: integrated solar panel, LED lamp, lithium battery, built-in hybrid controller and other accessories in to one lamp body.
2, Combine microwave sensor system with light control system, automatically turn on and off according to brightness.
3, Easy installation desgin, cable free. And save shipping cost.
4, High Brightness Taiwan Epistar/USA Bridgelux LED chips, Light efficiency reach 130lm/w.
5, High efficient quality(upto18%) mono-crystalline solar panel.
6, Relible LiFePO4 battery, Long lifespan and safe.
Parameter
| Model NO. |
AI-W12 |
AI-W15 |
AI-W20 |
AI-W25 |
AI-W30 |
| Power |
12W |
15W |
20W |
25W |
30W |
| Solar panel |
18V 18W |
18V 30W |
18V 45W |
18V 50W |
18V 50W |
| Lumen |
1500~1625lm |
1875~2025lm |
2500lm~2700lm |
3125~3375lm |
3750~4050ml |
| Battery |
12.8V 9AH |
12.8V12AH |
12.8V 21AH |
12.8V 24AH |
12.8V 27AH |
| LED |
12W (Epistar) |
15W(Epistar) |
20W(Bridgelux) |
25W(Bridgelux) |
30W(Bridgelux) |
| Colour temperature |
6000-6500K |
6000-6500K |
6500-7000K |
6500-7000K |
6500-7000K |
| Discharge time |
6-12hrs/day, 3-7 cloudy/rainy days as back up |
12hrs/day, 3 cloudy/rainy days as back up, can be custom-made to 7 cloudy/rainy days as back up |
| Working Temperature |
-30℃~＋70℃ |
| Waterproof(IP grade) |
IP65 |
| Mounting height |
3~4M |
4~5M |
5-6M |
5-6M |
6-7M |
| Product Dimension |
515*320*140MM |
670*325*140MM |
920*325*140MM |
1180*325*140MM |
1180*325*140MM |
| Package Dimension |
520*380*140MM |
750*400*210MM |
950*410*210MM |
1210*410*210 |
1210*410*210MM |
| N.W. |
6KG |
9KG |
14KG |
17.5KG |
18KG |
| G.W. |
7KG |
9.5KG |
15KG |
19KG |
20KG |
