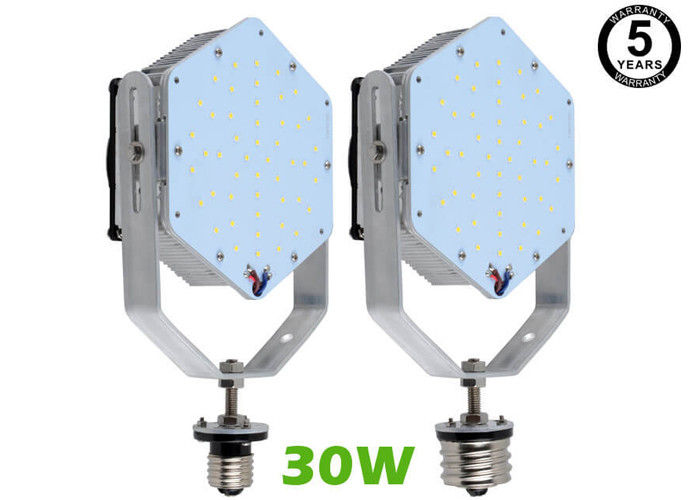

250W HPS HID Wall Pack Fixure DLC TUV E27 E40 LED Retrofit Lamp 30W 60W 80W 100W
1. Feature
1. Using AL 1050 Aluminum fin heat sink,can be used in a sealed environment. And with thermostatthermal protector, to be sure for safe.
2. PHILIPS SMD3030 LED chips and MOSO or Mean Well power supply, quality first.
3. ISO quality standard factory & well trained workers, 5 years warranty.
4. 0-10V dimmable optional.

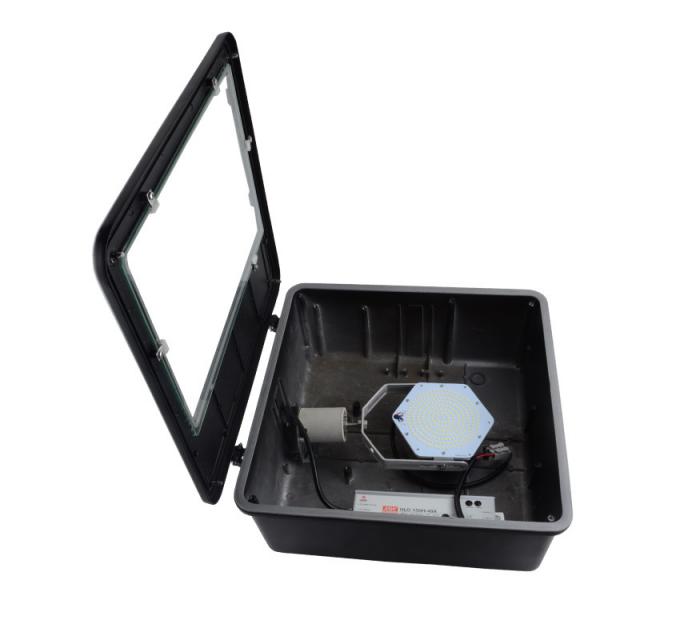

5. With the design of 360deg rotating and flexible design, perfect replacemnet for traditional shosebox lamp, high bay lamp,high mast lamp, cobra head street lamp, flood light, canopy lamp and wall pack lamp.
6. No UV and near-IR radiation in the light beam.
2. Our advantages
1.DLC &CE & RoHS & IP65 approved, 5 years Quality Guaranteed.
2.OEM & ODM available, more than 3 year OEM experience, independent R&D ability, and patent design.
4. Fast delivery time, 2-15 workdays depends on order quantity after payment confirmed.
5. Convenient transportation, close & easy access to both Shenzhen Seaport and Airport.
6. Flexible, small amount order accepted. Monthly supply capacity:3.000~10.000pcs/item.
3. Specifications
| Item NO. : LSRK-30WXY |
|
| 1. Output Wattage:30W |
10. E27/E26 : Dia145*230mm / 9.05'' (Shortest size)
E27/E26 : Dia145*300mm / 11.8'' (Longest size) |
2. Luminous Flux:4,300Lm
3. Light Source: Philips SMD 3030
4. Base: E40/E39(mogul) E27/E26(Medium)
5. Input Voltage: 100-300VAC,50/60Hz 6. CRI > 80 PF>0.95
7. Beam Angle: 120 degree
8. Hexagon shape
9. Lifetime: 50,000+ hours |
E40/E39 : Dia145*234mm / 9.84'' (Shortest size) E40/E39 : Dia145*288mm / 12.59'' (Longest size)
11. CCT : 3000K/4000K/5000/5700K/6000K
12. Meanwell Driver PLN-30-24A
13. Body Temperature:<50 ℃ @Ta=25℃
14. ETL cETL DLC CE RoHS certified
15. Arm rotatable and length adjustable
16. Replaces 75-105W Metal Halide/HPS |
| Item NO. : LSRK-45WXY |
|
| 1. Output Wattage:45W |
10. E27/E26 : Dia145*230mm / 9.05'' (Shortest size) E27/E26 : Dia145*300mm / 11.8'' (Longest size) |
2. Luminous Flux:6,480Lm
3. Light Source: Philips SMD 3030
4. Base: E40/E39(mogul) E27/E26(Medium)
5. Input Voltage: 100-300VAC,50/60Hz 6. CRI > 80 PF>0.95
7. Beam Angle: 120 degree
8. Hexagon shape
9. Lifetime: 50,000+ hours |
E40/E39 : Dia145*234mm / 9.84'' (Shortest size) E40/E39 : Dia145*288mm / 12.59'' (Longest size)
11. CCT : 3000K/4000K/5000/5700K/6000K
12. Meanwell Driver HLG-40H-24A
13. Body Temperature:<50 ℃ @Ta=25℃
14. ETL cETL DLC CE RoHS certified
15. Arm rotatable and length adjustable
16. Replaces 105-125W Metal Halide/HPS |
| Item NO. : LSRK-60WXY |
|
| 1. Output Wattage:60W |
10. E27/E26 : Dia145*230mm / 9.05'' (Shortest size) E27/E26 : Dia145*300mm / 11.8'' (Longest size) |
2. Luminous Flux:8,640Lm
3. Light Source: Philips SMD 3030
4. Base: E40/E39(mogul) E27/E26(Medium)
5. Input Voltage: 100-300VAC,50/60Hz 6. CRI > 80 PF>0.95
7. Beam Angle: 120 degree
8. Hexagon shape
9. Lifetime: 50,000+ hours |
E40/E39 : Dia145*234mm / 9.84'' (Shortest size) E40/E39 : Dia145*288mm / 12.59'' (Longest size)
11. CCT : 3000K/4000K/5000/5700K/6000K
12. Meanwell Driver HLG-60H-24A
13. Body Temperature:<50 ℃ @Ta=25℃
14. ETL cETL DLC CE RoHS certified
15. Arm rotatable and length adjustable
16. Replaces 150-175W Metal Halide/HPS |
| Item NO. : LSRK-80WXY |
|
| |
10. E27/E26 : Dia145*230mm / 9.05'' (Shortest size) |
1. Output Wattage:80W
2. Luminous Flux:11,520Lm
3. Light Source: Philips SMD 3030
4. Base: E40/E39(mogul) E27/E26(Medium)
5. Input Voltage: 100-300VAC,50/60Hz 6. CRI > 80 PF>0.95
7. Beam Angle: 120 degree
8. Hexagon shape
9. Lifetime: 50,000+ hours |
E27/E26 : Dia145*300mm / 11.8'' (Longest size)
E40/E39 : Dia145*234mm / 9.84'' (Shortest size) E40/E39 : Dia145*288mm / 12.59'' (Longest size)
11. CCT : 3000K/4000K/5000/5700K/6000K
12. Meanwell Driver HLG-80H-48A
13. Body Temperature:<50 ℃ @Ta=25℃
14. ETL cETL DLC CE RoHS certified
15. Arm rotatable and length adjustable
16. Replaces 250-275W Metal Halide/HPS |
| item NO. : LSRK-100WXY |
|
| |
10. E27/E26 : Dia145*230mm / 9.05'' (Shortest size) |
1. Output Wattage:100W
2. Luminous Flux:14,400Lm
3. Light Source: Philips SMD 3030
4. Base: E40/E39(mogul) E27/E26(Medium)
5. Input Voltage: 100-300VAC,50/60Hz 6. CRI > 80 PF>0.95
7. Beam Angle: 120 degree
8. Hexagon shape
9. Lifetime: 50,000+ hours |
E27/E26 : Dia145*300mm / 11.8'' (Longest size) E40/E39 : Dia145*234mm / 9.84'' (Shortest size) E40/E39 : Dia145*288mm / 12.59'' (Longest size)
11. CCT : 3000K/4000K/5000/5700K/6000K
12. Meanwell Driver HLG-100H-48A
13. Body Temperature:<50 ℃ @Ta=25℃
14. ETL cETL DLC CE RoHS certified
15. Arm rotatable and length adjustable
16. Replaces 300W-350W Metal Halide/HPS |
4. Optional Add ons
1. LED Driver fixed Kit
2. Low bay & Shoe box & Wall Pack & Canopy arm fixed kit
3.Lamp base adaptor
5. PACKAGE
| Item NO. : LSRK-30WXY |
Inner Box: 32cm*29cm*16cm
Lamp :0.8kg Driver:0.4kg QTY: 1pc
Outter Carton:63cm*61cm*33cm GW:11.6kg QTY: 8pcs |
| Item NO. : LSRK-45WXY |
Inner Box: 32cm*29cm*16cm
Lamp :0.8kg Driver:0.4kg QTY: 1pc
Outter Carton:63cm*61cm*33cm GW:11.6kg QTY: 8pcs |
| Item NO. : LSRK-60WXY |
Inner Box: 32cm*29cm*16cm
Lamp :0.8kg Driver:0.6kg QTY: 1pc
Outter Carton:63cm*61cm*33cm GW:13.2kg QTY: 8pcs |
| Item NO. : LSRK-80WXY |
Inner Box: 32cm*29cm*16cm
Lamp :0.8kg Driver:0.6kg QTY: 1pc
Outter Carton:63cm*61cm*33cm GW:13.2kg QTY: 8pcs |
| item NO. : LSRK-100WXY |
Inner Box: 32cm*29cm*16cm
Lamp :0.8kg Driver:0.8kg QTY: 1pc
Outter Carton:63cm*61cm*33cm GW:14.8kg QTY: 8pcs |
