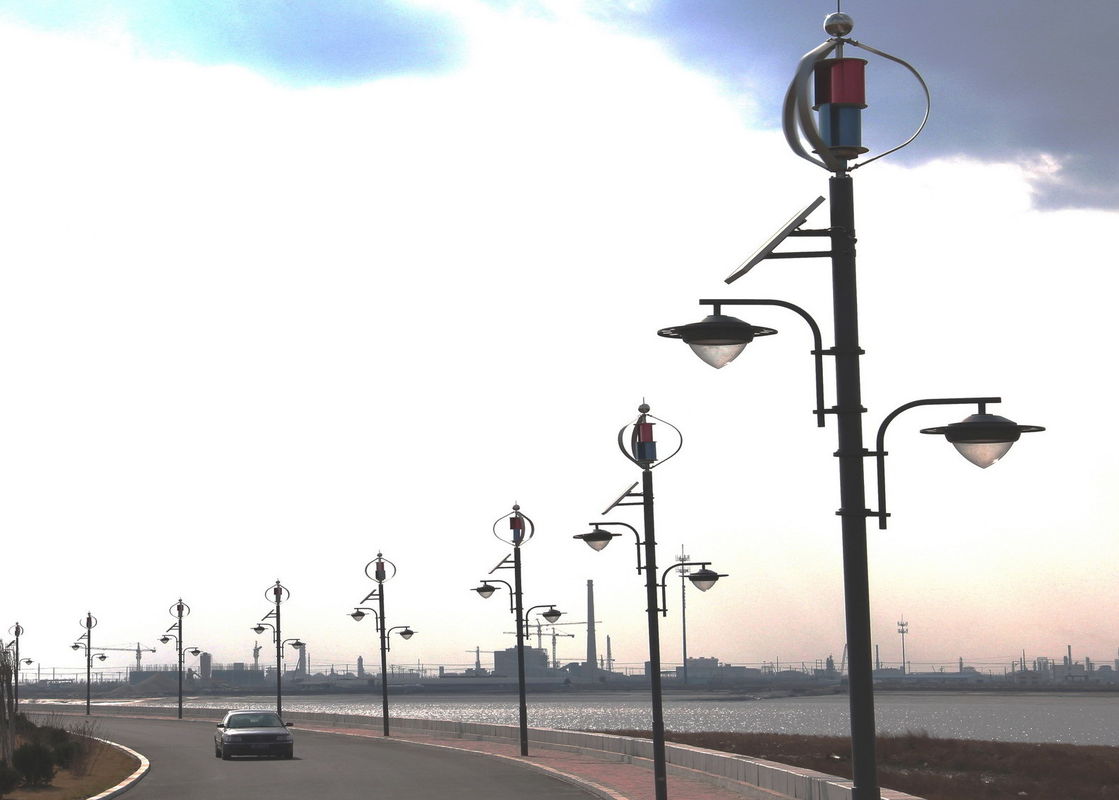

Wind Solar Hybrid Street Light System with Sodium lamps working 12 hours each night
Product Details:
| Place of Origin: |
Shenzhen, China |
| Brand Name: |
TYPMAR |
| Certification: |
CE IEC ISO9001 |
| Model Number: |
CXF-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
Discounts available depending on quantity |
| Packaging Details: |
Plywood |
| Delivery Time: |
15 days |
| Payment Terms: |
Western Union |
Detailed Product Description
| Structure: |
Combined Drag-based And Lift-based Design |
Blades: |
Darrieus And Sanvonius Design |
| Blades Quantity: |
7 (3D+4S) |
Colour: |
Red, Blue, Silver And Customerized Colour |
| Swept Area: |
0.8 Sqm |
Protection: |
Patent Lighting Protection & And RPM Limit Protection |
| RPM: |
0-600RPM |
Life Span Design: |
15 Years |
Wind Solar Hybrid Street Light System with Sodium lamps working 12 hours each night
- Name: Wind solar hybrid Street Light
- Configuration: 1 400w wind turbine, 2 100w pv panels, 2 45w Sodium lamps, 4 100AH batteries.
- Off grid system without power supply from Power Utilities
- 5 days working duration under neither wind nor sunlight
Brief to the proposal
The proposal is a wind solar hybrid street lighting system with bottomless barrel buried battery in which the pole is bottom diameter 230mm and top diameter 135mm, and thickness 5mm cone-rod and pole’s total height is 8m, and color is white based on galvanization.
The configuration consists of one 300w wind turbine, one 300W wind solar hybrid controller , two 100W solar panels , one 60W LED street light and four 12V100AH batteries. Lighting control system is set as 12 hours lighting with time control lighting duration and automatic light control switched ON.
Wind Turbine Feature
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Life span: at least 20 years
- Solar WindHybrid Power Lamp System Installed in 2010 Shenzhen Xin'an Rd
Specification:
|
Maglev wind generator
|
| Type |
CXF200 |
CXF300 |
CXF600 |
CXF1000 |
CXF3000 |
| Rated Power |
200W |
300W |
600W |
1000W |
3000W |
| Size(Height / Diameter) |
1035/1150mm |
1090/1240mm |
1320/1540mm |
2200/2400mm |
4200/4570mm |
| Turbine Weight |
22.5KG |
31KG |
49KG |
180KG |
715KG |
| Blades Material |
Aluminum alloy |
Aluminum alloy |
aluminum alloy |
aluminum alloy |
aluminum alloy |
| Blades Qty. |
3 |
3 |
3 |
3 |
3 |
|
Start-up
wind speed
|
1m/s |
1.3m/s |
1.3m/s |
1.5m/s |
1.5m/s |
|
Cut in
wind speed
|
2m/s |
3m/s |
3m/s |
5m/s, 3.5m/s |
3.5m/s |
| Rated Wind Speed |
13m/s |
12m/s |
13m/s |
13m/s |
13m/s |
| Cut out Wind Speed |
16m/s |
15m/s |
15m/s |
15m/s |
15m/s |
| Survival Wind Speed |
60m/s |
65m/s |
65m/s |
60m/s |
60m/s |
| Generator Type |
AC,3 phases |
AC,3 phases |
AC,3 phases |
AC,3 phases |
AC,3 phases |
| Controller output voltage |
DC12V |
DC24V/12V |
DC24V/12V/48V |
DC48V/24V |
DC48/96V |
| Controller output current |
<12Amp |
<20Amp |
<30Amp |
<50Amp |
<130Amp |
| Controller braking system |
3-Phase /short circuit protection/ NFB/
Manual break or automatic brake optional
|
| Ambient Temperature |
-30～50 ℃ |
-40～50 ℃ |
-40～50 ℃ |
-40～50 ℃ |
-40～50 ℃
|
