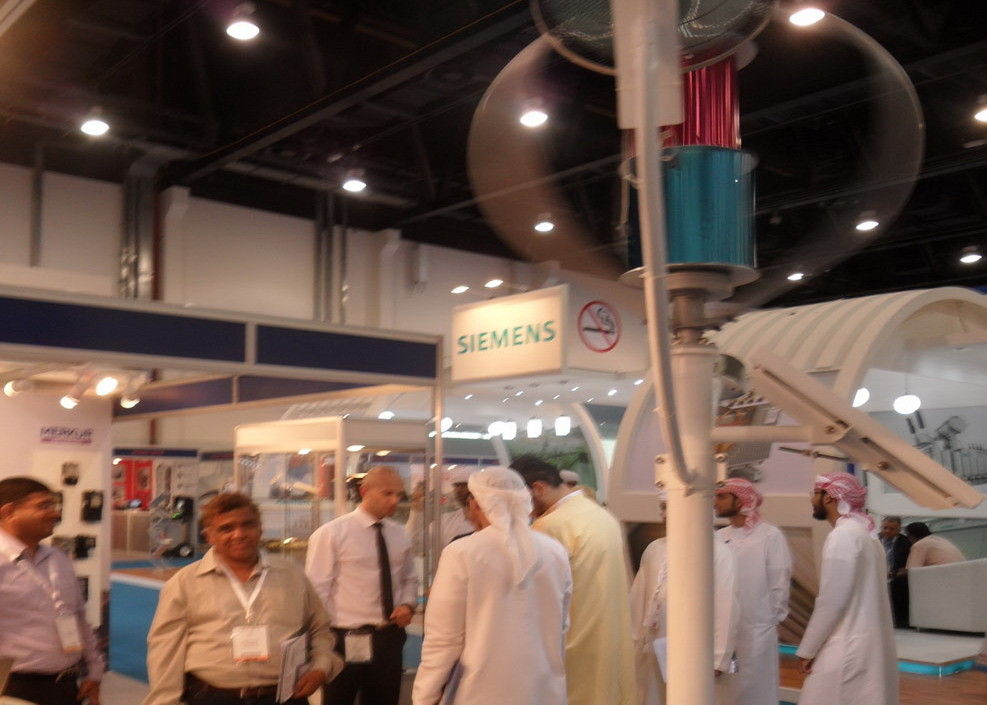

1000w Low Speed Wind Turbine Maglev , Magnetic Levitation Generator
1. Quick Detail
- Name :CXF-200w , 300w , 600w , 1000w , 3000w Vertical Axis Maglev Wind Generator
- Applications : Off grid, grid-tie, residential and commercial, street lights, telecoms BTS and etc.
- Colour:Red & blue, Sliver and customrized colour
2. Description
The CXF series of vertical axis Maglev Wind Generator undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities. It is flexible to use the maglev wind generator to build both off grid and on grid power system. Typmar provides total solutions to wind solar hybrid power systems including PV panels, LED lamp and batteries.
3. Maglev Wind Generator Features
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
4. Technical Specifications
|
Maglev Wind Generator Items
|
CXF300
|
CXF600
|
CXF1000
|
CXF3000-Ⅰ
|
CXF3000-Ⅱ
|
|
Rated power
|
300W
|
600W
|
1000W
|
3000W
|
3000W
|
|
Dimension
(Height/Diameter)
|
Ø1080/1240
|
Ø1320/1540
|
Ø2200/2400
|
3530/Ø3600
|
Ø4160/4570
|
|
Weight
|
27
|
50 kg
|
180 kg
|
415KG
|
680 kg
|
|
Blade material
|
Aluminum Alloy
|
Aluminum Alloy
|
Aluminum Alloy
|
Aluminum Alloy
|
Aluminum Alloy
|
|
Blade quantity
|
3
|
3
|
3
|
3
|
3
|
|
Swept area ㎡
|
0.76
|
1.27
|
3.6
|
7.02
|
7.72
|
|
Min starting wind speed
|
1m/s
|
1.3m/s
|
1.5 m/s
|
1．5m/s
|
1.5m/s
|
|
Cut-in wind speed
|
2.7 m/s
|
2 7m/s
|
3.5m/s
|
3．5m/s
|
3.5m/s
|
|
Rated wind speed
|
12m/s
|
12m/s
|
13m/s
|
13m/s
|
13m/s
|
|
Cut-off wind speed
|
15m/s
|
15m/s
|
15m/s
|
15m/s
|
15m/s
|
|
Survival wind speed
|
65m/s
|
65m/s
|
60m/s
|
60m/s
|
60m/s
|
|
Generator type
|
AC,3Phases
|
AC,3Phases
|
AC,3Phases
|
AC,3Phases
|
AC,3Phases
|
|
Controller Output Voltage
|
12V/24V
|
24V/48V
|
48V
|
48V
|
96V
|
|
Controller Braking System
|
3-phase short circuit by NFB brake
|
3-phase short circuit by NFB brake
|
3-phase short circuit by NFB brake
|
3-phase short circuit by NFB brake
|
3-phase short circuit by NFB brake
|
|
Ambient Temperature
|
-40～50 ℃
|
-40～50 ℃
|
-40～50 ℃
|
-40～50 ℃
|
-40～50 ℃
|
|
Noise
|
Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db
|
5. Applications
Off grid, grid-tie, residential and commercial, street lights, telecoms BTS and etc.
