Darrieus Savonius Off Grid Wind Turbine 600W 48V With AL Alloy Blade

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	TYPMAR
Certification:	CE IEC ISO9001
Model Number:	CXF- 600w 24V,48V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood with paper packages
Delivery Time:	15 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 sets per month

Detailed Product Description

Blade Material:	Alluminum Alloy	Color:	Red And Blue, Silver And Customerized Colar
Design:	Darrieus And Sanvonius	Material:	Aluminium Alloy
Generator Type:	Three Phase AC Generator With Direct Drive	Rated RPM:	<550RPM

Darrieus Savonius Off Grid Wind Turbine 600W 48V With AL Alloy Blade

1. Quick Detail

Name :CXF-300w , 600w , 1000w , 3000w Vertical Axis Maglev Wind Generator

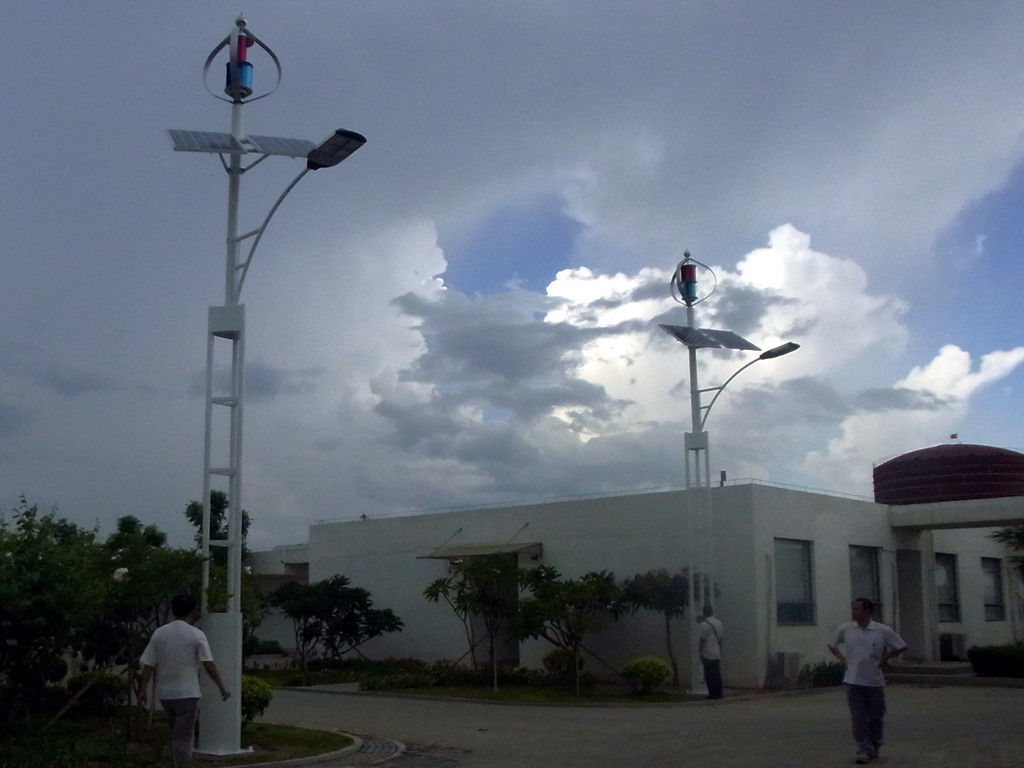

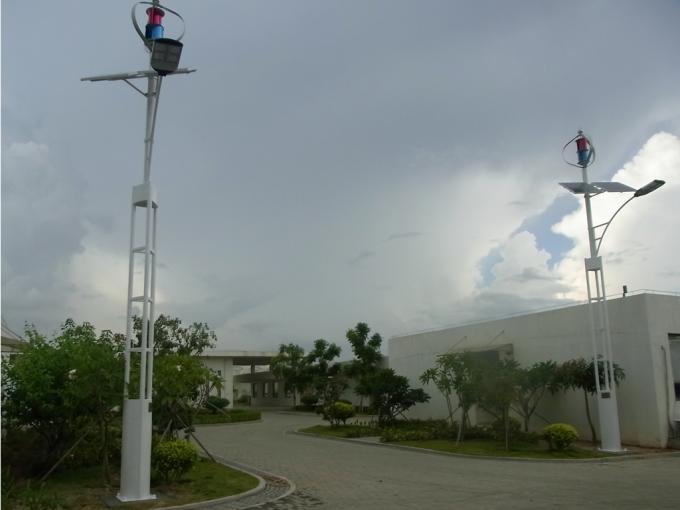

Applications : Off grid, grid-tie, residential and commercial, street lights, telecoms BTS,etc.
Colour:Red & blue, Sliver and customrized colour
Wind tunnel testing proved reliable products

2. Specifications

Items	CXF300	CXF600	CXF1000	CXF3000-Ⅰ	CXF3000-Ⅱ
Rated power	300W	600W	1000W	3000W	3000W
Dimension (Height/Diameter)	Ø1080/1240	Ø1320/1540	Ø2200/2400	3530/Ø3600	Ø4160/4570
Weight	27	50 kg	180 kg	415KG	680 kg
Blade material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Blade quantity (S +D)	7	7	7	7	7
Swept area ㎡	0.76	1.27	3.6	7.02	7.72
Min starting wind speed	1m/s	1.3m/s	1.5 m/s	1．5m/s	1.5m/s
Cut-in wind speed	2.7 m/s	2 7m/s	3.5m/s	3．5m/s	3.5m/s
Rated wind speed	12m/s	12m/s	13m/s	13m/s	13m/s
Cut-off wind speed	15m/s	15m/s	15m/s	15m/s	15m/s
Survival wind speed	65m/s	65m/s	60m/s	60m/s	60m/s
Generator type	AC,3Phases	AC,3Phases	AC,3Phases	AC,3Phases	AC,3Phases
Controller Output Voltage	12V/24V	24V/48V	48V	48V	96V
Controller Braking System	3-phase short circuit by NFB brake	3-phase short circuit by NFB brake	3-phase short circuit by NFB brake	3-phase short circuit by NFB brake	3-phase short circuit by NFB brake
Ambient Temperature	-40～50 ℃	-40～50 ℃	-40～50 ℃	-40～50 ℃	-40～50 ℃
Noise	Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db

3. Features

a. Environment:

• Zero emissions

• Synergy with Solar and Geothermal systems

• Dual colors alert bats and birds of obstacle (animal-friendly)

b. Installation:

• Easy Installation: System can be assembled in under an hour

without any welding

• Single or multiple unit connections for bigger capacity

• Easy connection with PV systems

c. Design:

• Gear-free design: No need to replace worn-out or broken gear teeth

• Brushless: No motor brushes that are high failure items and need

replacements regularly

• Bearing-free design: No need to lubricate or to replace worn-out bearings

• Floating magnet design: reduces rotational resistance to enhance electricity

generation and extend turbine life
• No yaw or furling mechanism required: allows for peak power output at any wind speed

• No cogging torque for cutting-in at low wind speed

• Direct-drive: Extends product life

• Blades can start rotating at a mere wind velocity of 2.2 mph (1 m/s)

• Space-saving, aerodynamic airframe

• Heavy duty, industrial-quality construction

d. Control:

• Intelligent control system with active protective functions to lower rotational speed automatically in case of very strong wind
• Remote monitoring available to monitor and assess data and equipment performance

4. Applications

Grid-tie and off-grid residentail applications.

5. FAQ

a. Is Typmar a manufacturer or trading company?

We are a professional manufacturer, not a trading company. It’s TYPMAR who firstly invented maglev vertical axis wind turbine. We have USA patent (USD 647,477S ) and EU Patent (NO001721416-0001).

b. Is the maglev wind turbine expensive?

Yes, it is more expensive than HAWT because of solid and durable materials, but it has higher power effficiency and longer lifespan than HAWT.

c. What is benefits of VAWT in comparison to a traditional horizontal axis wind generators.

Magnetic levitation technology
Independent of the direction of the wind
Higher efficiency than the propeller blades
Works even in turbulence
Visually pleasing appearance and rotation of the blades
Quiet or almost minimal acoustic noise
Movement of the blades even in low wind speed of 1m/sec
Turbine construction is resistant to gale 60m/s (132MPH)
Designed for mounting on mast, straight or saddle area
Design: aluminum alloy, stainless steel
Design life: at least 20 years
Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
