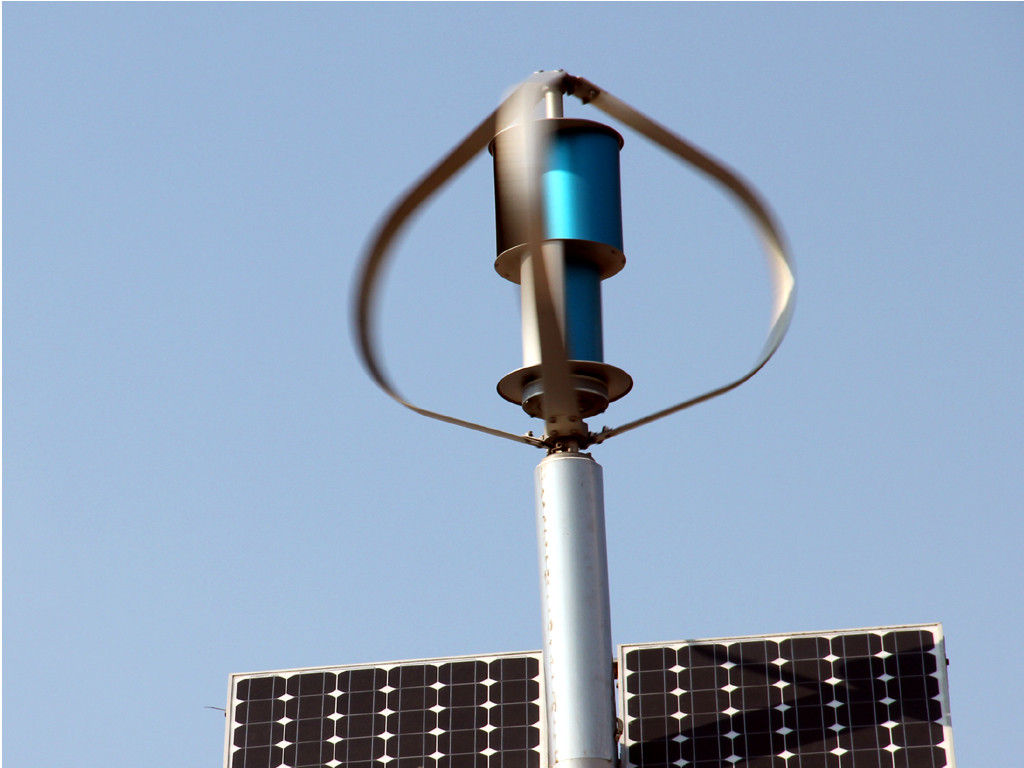

12V Wind Solar Hybrid System With 300W VAWT for Highway Road Monitoring System
A monitoring system under the wind / solar hybrid power supply of the video surveillance system, with a large range for target area under surveillance and a fire alarm, burglar alarm function, the use of wind and solar hybrid power supply.
you can adjust the frame rate according to user needs, resolution, image quality, the received video surveillance images can be stored in a computer or special equipment to achieve the function with a return visit.
TYPMAR wind and solar hybrid monitoring system is a complete stand-alone system powered by renewable energy wind & solar . The whole system is designed according to project site wind speed and solar resource condition and monitoring system load, the camera and signal transmission system are completely wireless system powered by DC power, so the whole system including the monitoring system can be operated and managed remotely. Such application can be applicable for highway, forest-fire prevention and community safety monitoring system. The power storage system could support the monitoring system keep working for 3 consecutive cloudy or rainy days, it can also be designed for backup 5 or 7 days according to specific project requirement. TYPMAR would provide a complete system kit with all hardware and installation guide included.
Technical Specifications for Monitoring System
Installed Along with Maglev Wind Turbine & PV Hybrid Power System
|
Rated power
|
Approx. 300Wh at 13 m/s (26 mph)
|
|
Swept Area
|
0.8 m2
|
|
Height / Diameter
|
1.23/1.09 m
|
|
Weight
|
27 kg
|
|
Shipping Dimensions
|
1160 x 520 x 790 mm 56 kg
|
|
Startup Wind Speed
|
1 m/s (2.6 mph)
|
|
Voltage
|
12, and 24 V AC
|
|
Turbine Controller
|
Smart Wind $ solar hybrid controller
|
|
Body
|
Permanent mold cast aluminum
|
|
Blades
|
(7) Injection-molded aluminum
|
|
Alternator
|
Permanent maglev generator
|
|
Overspeed Protection
|
3 phases short-circuit braking control
|
|
Survival Wind Speed
|
65m/s
|
|
Mount
|
Inner diameter 80MM 140mm outer diameter
|
|
Wind Speed Operating Range
|
1-15 m/s (8-49 mph)
|
|
Optimum Wind Speed Range (RPM)
|
8-10 m/s ( 750-800RPM)
|
Monitoring System Installed Along with Maglev Wind Turbine & PV Hybrid Power System
|
|
