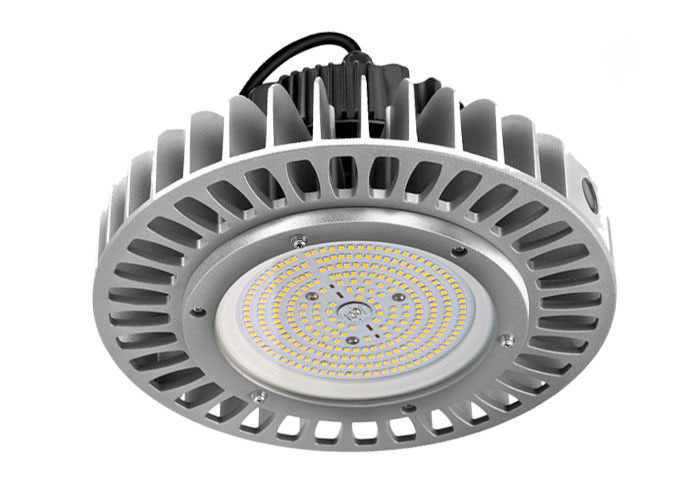

2018 New Factory Warehouse 100W 150W 200W UFO LED Industrial High Bay UL listed
1. Feature
1. AL6063 AL alloy fin UFO shape heat sink, excellent heat sink.
2. America CREE SMD3030 LED chips and MOSO or Mean Well power supply, quality first.
3. ISO quality standard factory & well trained workers, 5 years warranty.
4. 0-10V dimmable optional.
2. Our advantages
1. UL &CE & RoHS & IP65 approved, 5 years Quality Guaranteed.
2. OEM & ODM available, more than 3 year OEM experience, independent R&D ability, and patent design.
4. Fast delivery time, 2-15 workdays depends on order quantity after payment confirmed.
5. Convenient transportation, close & easy access to both Shenzhen Seaport and Airport.
6. Flexible, small amount order accepted. Monthly supply capacity:3.000~10.000pcs/item.
3. Specifications
| Main Parameter |
| Model NO. |
UHB-100W |
UHB-150W |
UHB-200W |
UHB-240W |
| Luminosity |
14500lm±5%
|
21750lm±5%
|
29000lm±5%
|
34800lm±5%
|
| Power |
100W |
150W |
200W |
240W
|
| Light Efficiency |
145lm/w |
145lm/w |
145lm/w
|
145lm/w
|
| Chip Brand |
CREE 3030 |
| CCT |
4000/5000/5700K/6500K |
| CRI |
Ra>80 |
| Beam Angle |
60° 90° 120° |
| Input Voltage |
85-265V 50-60HZ |
| IP Grade |
IP65 |
| Driver |
MOSO Or Meanwell Driver |
| LED Lifespan |
50000 Hours at 50℃ ambient temperature |
| Working Temperature |
-40℃ ~ 50℃ |
|
Item Model
|
Carton size (mm)
|
N.W.(kg)
|
G.W ( kg)
|
QTY.(PCS)
|
|
UHB-100W
|
298*298*270mm
|
3.5 KG
|
4.2 KG |
1PCS |
| UHB-150W |
298*298*270mm |
3.5 KG |
4.2 KG |
1PCS |
| UHB-200W |
325*325*297mm |
5.1 KG |
5.8 KG |
1PCS |
| UHB-240W |
325*325*297mm
|
5.5 KG
|
6.4 KG |
1PCS |
5. AgeTesting
6. Application
1. Factory workshop, warehouse, toll station, gas station, book store.
2.supermarket, gym, exhibition hall and other places where need lighting.
