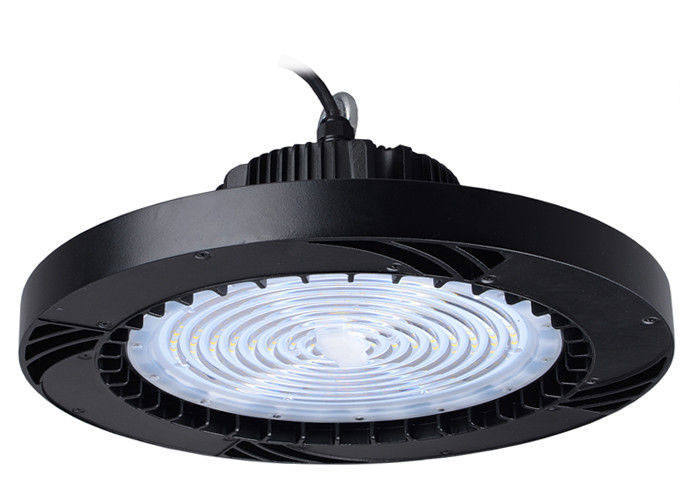

DLC Premium 100W 150W 200W 240W UFO LED High Bay Light Fixture With CREE LED
1. Feature
1. ADC12 AL alloy fin UFO shape heat sink, excellent heat sink.
2. America CREE SMD3030 LED chips and MOSO or Mean Well power supply, quality first.
3. ISO quality standard factory & well trained workers, 5 years warranty.
4. 0-10V dimmable optional.
5. Tempered glass,PC reflector,Aluminum reflector,Yoke Bracket,milky cover are available.
6. Merryteck sensors and Zigbee system compliable.
7. No UV and near-IR radiation in the light beam.
2. Our advantages
1.DLC &CE & RoHS & IP65 approved, 5 years Quality Guaranteed.
2.OEM & ODM available, more than 3 year OEM experience, independent R&D ability, and patent design.
4. Fast delivery time, 2-15 workdays depends on order quantity after payment confirmed.
5. Convenient transportation, close & easy access to both Shenzhen Seaport and Airport.
6. Flexible, small amount order accepted. Monthly supply capacity:3.000~10.000pcs/item.
3. Specifications
| Item NO. |
LSUFO-60WXY-LV(XXK) |
LSUFO-100WXY-LV(XXK) |
LSUFO-150WXY-LV(XXK) |
LSUFO-200WXY-LV(XXK) |
LSUFO-240WXY-LV(XXK) |
| DLC NO. |
LSUFO-60WND-LV
LSUFO-60WND-LV
|
LSUFO-100WND-LV
LSUFO-100WD-LV
|
LSUFO-150WND-LV
LSUFO-150WD-LV
|
LSUFO-200WND-LV
LSUFO-200WD-LV
|
LSUFO-240WND-LV
LSUFO-240WD-LV
|
| Wattage |
60 Watt |
100 Watt |
150 Watt |
200 Watt |
240 Watt |
| Luminous Flux |
7,800lm |
13,000lm |
19,500lm |
26,000lm |
31,200lm |
| Dimension |
280*115mm |
360*136mm |
420*139mm |
| Input Voltage |
100-277VAC,50/60Hz |
| Light Source |
Philips/CREE SMD3030 |
| Beam Angle |
60/90/120 degree |
| Color Temp |
3000K,4000K,5000K,5700K |
| Dimming |
Options |
| Luminous Efficacy |
140lm/W |
| Lifetime |
50,000 Hours |
| CRI |
>Ra70, >Ra80 |
| LED Driver |
Meanwell |
| IP Rating |
IP65 (TUV Report Available) |
| Certified |
ETL, cETL, DLC Premium,TUV,CE,RoHS & SAA |
4. Optional Add ons(UFO are standardly with lens)
This "Hurricane" series LED High Bay adopts the design styple of hurricane shape, which could lead to the best air convection design, die-casting integrated heat sink maximizes the heat dissipation area to reduce the light decay of the lamp and lengthen the lifespan.
This "Hurricane" series UFO LED High Bay can satisty various application projects requirements,supporting Aluminum reflector,PC reflector without end cap,Tempered Glass,Yoke Bracket,Microwave Motion sensor,Zigbee system lighting etc.
The "Hurricane" series UFO LED High Bay Light can be an ideal lighting choice for warehouses, large warehouse spaces and other industrial and commercial lighting applications. Do remember it that we are the R&D factory, so we have the most competitive price in the market with the top quality level.
5. PACKAGE
| Standard (1pc) |
1pc/44*41*21cmcm GW: 5.5kg |
| With sensor box size |
1pc/52*47*22cm |
| PC reflector box |
10pcs/45*45*65cm |
| Bottom Cap package |
17pcs/47*47*40cm |
| 20ft container |
740ps |
| 40ft container |
1500pcs |
| 40ft HQ container |
1750pcs
|
