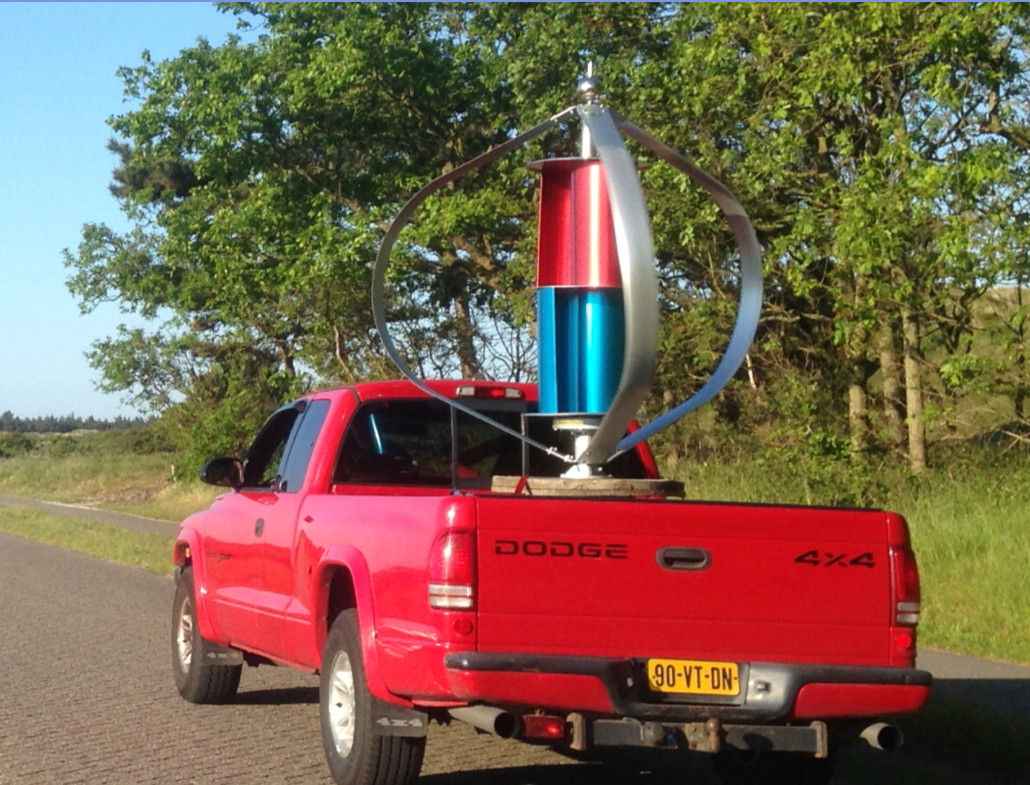

48V 600W Small Vertical Axis Maglev Wind Turbine for Home Use , CXF-600
Quick Detail:
- Name :CXF-600 Maglev Vertical Axis Wind Turbine
- Application :street lighting system and Home Use
- Color:Red & blue, Sliver and customrized
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
Description:
The CXF series of Maglev Vertical Axis Wind Turbine undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities
Applications:
The 600w-24V/48V Maglev Vertical Axis Wind Turbine is ideal for both of residential and commercial applications as well as off grid and on grid power systems. The unit provides a durable, reliable, and fully customized hybrid solution to Telecoms Base Receiver Station (BTS), Charging Station by Solar and wind and also very suitable for power supply to home
Specifications:
|
Maglev Vertical Axis Wind Turbine tems
|
CXF600
|
|
Rated power
|
600W
|
|
Dimension (Height/Diameter)
|
Ø1540mm / 1320mm
|
|
Weight
|
50 kg
|
|
Blade material
|
Aluminum Alloy
|
|
Blade quantity
|
7 (3 Darrieusand 4 Savonius)
|
|
Swept area ㎡
|
0.30
|
|
Min starting wind speed
|
1.3 m/s
|
|
Cut-in wind speed
|
3.5m/s
|
|
Rated wind speed
|
13m/s
|
|
Cut-off wind speed
|
15m/s
|
|
Survival wind speed
|
60m/s
|
|
Generator type
|
AC,3Phases
|
|
Controller Output Voltage
|
24V/48V
|
|
Controller Braking System
|
3-phase short circuit by NFB brake
|
|
Ambient Temperature
|
-40～50 ℃
|
|
Noise
|
Less than 40dB
|
|
Annual Energy Production (@ 5 m/s wind speed )
|
about 1500 kWh
|
Competitive Advantage:
Why to choose TYPMAR’s vertical axis maglev wind turbine ?
|
Comparison between HAWT AND MVAWT
|
|
Item
|
Horizontal axis wind turbine (HAWT)
|
Maglev vertical axis wind turbine (MVAWT)
|
|
Starting wind speed
|
High(≥3m/s)
|
Low(1m/s)
|
|
Wind conditions required
|
Require stable wind direction
|
Any wind direction
|
|
Encountered turbulence
|
Efficiency is reduce
|
Efficiency is not affected
|
|
Power stability
|
Changing by wind direction
|
Without any wind effect
|
|
Noise
|
Large (More than 45dB)
|
Low noise of less than 40dB thank to maglev frictionless technology
|
|
Product appearance
|
Ordinary
|
Beautiful
|
|
Installation height
|
High (need to avoid the terrain turbulence)
|
Low (not influenced by turbulence)
|
|
Installation location
|
Open area like suburb
|
Any locations
|
|
Generator material
|
Plastic or composite
|
metal
|
|
Structure strength
|
Poor (easy to broken)
|
High(double strengthen arm)
|
|
Resistance of wind speed
|
Poor(about 40 m/s)
|
High
|
