1KW 48V Magnetic Levitation Vertical Axis Wind Turbine Low Noisy Life Span 20 Years
Quick Detail
1. Generate your own power - Power independence
2. Integrated Controller – easy for installation
3. Optional Remote Monitoring system – Monitoring remotely your installation
4. No need city power, no need cable wiring
5. Flexible installation
6. Maintanence free
Description
Here's the configuration for the system:
Maglev Vertical Axis Wind Turbine 1000W 1 set
Hybrid Controller 1000W 48V 1 pc
Inverter 1 pc
Dump load 1 pcs
GEL batteries 200Ah 12V 4 pcs

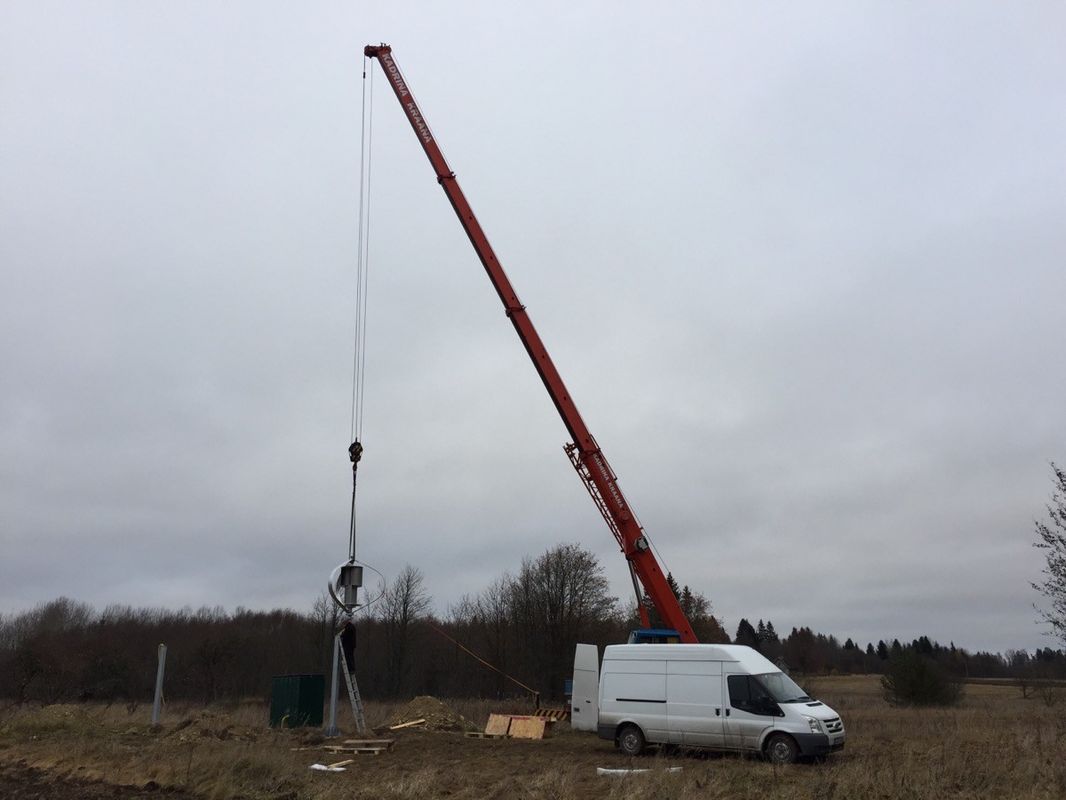

People on island are in extreme power shortage. Everyday they have to face power cut several times and the keeping on increasing fuel for their gensets. To solve the problem, TYPMAR sales engineer have tight cooperation with the power supply party. And have built a testing site on the island. Now the system have been working for nearly two years.
TYPMAR off grid wind generator's inverter is the core part of the whole system, the inverter is developed specially for TYPMAR series wind turbine according to CXF series wind turbine special features with an optimized power curve pre-written into inverter and smart over-voltage braking protection, which offers a reliable combination of high efficiency, easy-installation, high wind protection and grid-failure protection.
Off-Grid Inverter Features:
● Over 97% Max. efficiency
● Ultra wide input voltage range
● Precise MPPT algorithm
● Compact and light design for one-person easy installation
● Wind/PV individual output
● Full loading output prior for wind output
● Programmable power curve for wind, PV MPPT algorithm, Max. efficiency
● High reliability for topology circuit, quality components and multi-protection
● RS485, WiFi, GPRS interface
● Convenient remote monitoring function
● Brake protection function
Specification
| Maglev Vertical Axis Wind Turbine items |
CXF1000 |
| Rated power |
1000W |
| Dimension (Height/Diameter) |
Ø2200mm / 2400mm |
| Weight |
188 kg |
| Blade material |
Aluminum Alloy |
| Blade quantity |
3 |
| Swept area ㎡ |
3.6 |
| Min starting wind speed |
1.5 m/s |
| Cut-in wind speed |
3.5m/s |
| Rated wind speed |
13m/s |
| Cut-off wind speed |
15m/s |
| Survival wind speed |
60m/s |
| Generator type |
AC,3Phases |
| Controller Output Voltage |
48V |
| Controller Braking System |
3-phase short circuit by NFB brake |
| Ambient Temperature |
-40～50 ℃ |
| Noise |
Less than 40dB |
| Annual Energy Production (@ 5 m/s) |
about 750 kWh |
Advantages
|
HAWT AND MVAWT
|
|
Item
|
Horizontal axis (HAWT)
|
Vertical axis (EML)
|
|
Start wind speed
|
High(≥3m/s)
|
Low(1m/s)
|
|
Wind conditions required
|
Require stable wind direction
|
Any wind direction
|
|
Encountered turbulence
|
Reduce the efficiency
|
Efficiency is not affected
|
|
Power stability
|
Change by wind direction
|
Without any wind effect
|
|
Noise
|
Large(45 decibels or more)
|
Low noisy (because there is no mechanical friction)
|
|
Product appearance
|
Normal
|
Beautiful
|
|
Installation height
|
High(need to avoid the terrain turbulence)
|
Low(not afraid of turbulence)
|
|
Installation location
|
Just in open area like suburb
|
Any location
|
|
Generator material
|
Plastic or composite
|
metal
|
|
Structure strength
|
Poor (easy to broken)
|
High(double strengthen arm)
|
|
Resistance of wind speed
|
Poor(about 40 m/s)
|
High
|
