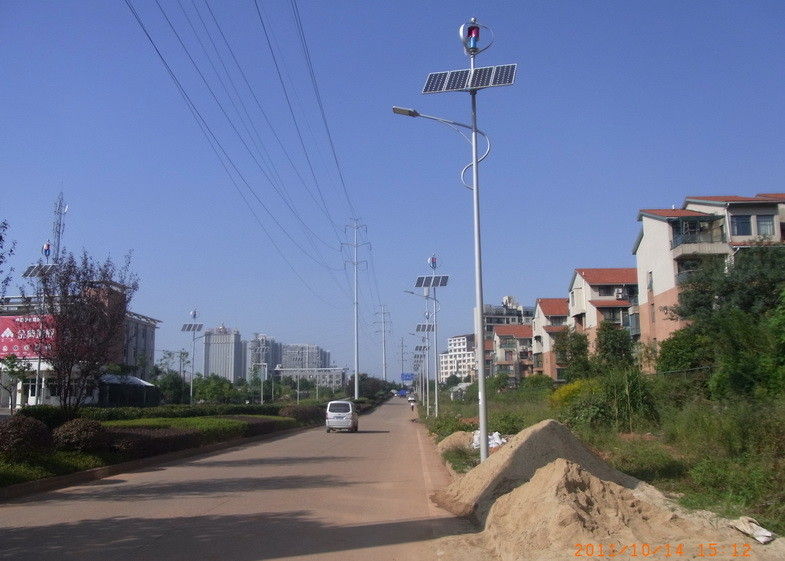

VAWT Maglev Wind Solar Hybrid Street Light System for Residential Area , Park Lot
Quick Detail
1. Lightning rod built in wind turbine body, safe in storm weather
2. No need city power, off grid,
3. Beautiful for the LED street lighting system and the residential block
4. No pollution, low carbon, green life
5. Direct drive, no mechanic friction
6. Start up at 1.0 m/s, cut in wind speed 2.5 m/s
Description
The wind solar hybrid system street lighting consists of 300W Maglev wind turbine. The wind turbine is easy starting up, light weight and small in size. While the hybrid street lighting system installed, you can find it’s a beautiful view for the urban city as well as the following benefits.
Installation:
• Easy Installation: System can be assembled within one hour
• No welding
• Single or multiple unit connection for bigger power production
• Easy connection with PV systems
Design:
• Gearless design: no need to replace worn-out or broken gear
• Brushless: motor brushes making high failure items results in regular replacements
• Bearing-free design: no need to lubricate or to replace worn-out bearings
• Magnetic levitation design: reduces rotational resistance to enhance power generation as well as prolong the turbine life.
• No yaw or furling mechanism required: allows for peak power output at any wind speed
• No cogging torque for cutting-in at low wind speed
• Direct-drive: Extends product life
• Blades can start rotating at very low wind velocity of 2.2 mph (1 m/s)
• Space-saving, aerodynamic airframe
• Heavy duty and industrial level construction
Wind Solar Hybrid Street Light System With Doulbe LED Lamps
Control:
• Intelligent control system has automatic protective functions to lower rotational speed in case of so strong wind as hurricane
• Real-time remote monitoring system can monitor and acquire data and equipment performance
Environment:
• Zero emission
• Synergy with Solar and Geothermal systems
• Dual colors make it easy for bird identification in order to prevent collisions (Animal-friendly)
Application
The wind solar hybrid system can be applied to many places,
Street lighting
High way lighting
Park lighting
Park lot lighting
Square lighting
Landscape lighting
Tourist site lighting
Specification
Rated power | Approx. 300Wh at 13 m/s (26 mph) |
Swept Area | 0.8 m2 |
Height / Diameter | 1.23/1.09 m |
Weight | 27 kg |
Shipping Dimensions | 1160 x 520 x 790 mm 56 kg |
Startup Wind Speed | 1 m/s (2.6 mph) |
Voltage | 12, and 24 V AC |
Turbine Controller | Smart Wind $ solar hybrid controller |
Body | Permanent mold cast aluminum |
Blades | (7) Injection-molded aluminum |
Alternator | Permanent maglev generator |
Overspeed Protection | 3 phases short-circuit braking control |
Survival Wind Speed | 65m/s |
Mount | Inner diameter 80MM 140mm outer diameter |
Wind Speed Operating Range | 1-15 m/s (8-49 mph) |
Optimum Wind Speed Range (RPM) | 8-10 m/s ( 750-800RPM) |
Why to choose TYPMAR wind turbine ?
The CXF series of maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple subjects to have the following features:
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
HAWT AND MVAWT |
Item | Horizontal axis (HAWT) | Vertical axis (EML) |
Start wind speed | High(≥3m/s) | Low(1m/s) |
Wind conditions required | Require stable wind direction | Any wind direction |
Encountered turbulence | Reduce the efficiency | Efficiency is not affected |
Power stability | Change by wind direction | Without any wind effect |
Noise | Large(45 decibels or more) | Low noisy (because there is no mechanical friction) |
Product appearance | Normal | Beautiful |
Installation height | High(need to avoid the terrain turbulence) | Low(not afraid of turbulence) |
Installation location | Just in open area like suburb | Any location |
Generator material | Plastic or composite | metal |
Structure strength | Poor (easy to broken) | High(double strengthen arm) |
Resistance of wind speed | Poor(about 40 m/s) | High |
