300W Wind turbine Wind Solar Power System for Advertising Lighting , 24V DC Power
Quick Detail
1. Wind solar power system Configuration is customerized
2. High attention attract
3. No pollution, low carbon, green life
4. After the installation of green power, power is free
5. Savonius Turbine and Darrieus Turbine are combined, perfect work in breeze and strong wind
6. Start up at 1.0 m/s, cut in wind speed 2.5 m/s
Description

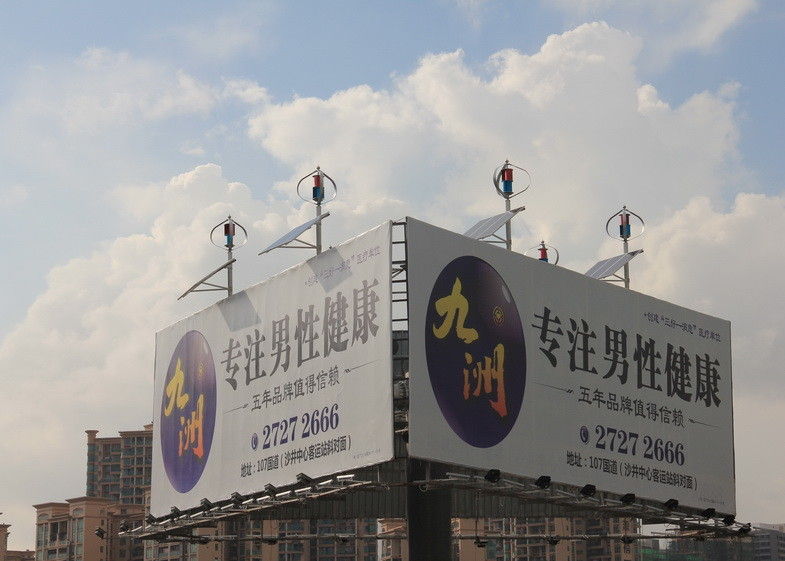

TYPMAR maglev wind turbine have 6 models, 200W, 300W, 400W and 600W, 1KW, 3KW are for hybrid street lighting, home use, telecom station or any place need independent power. For the wind and solar power system for advertising lighting, we can choose 300W and 600W wind turbine, the image configuration as below:
300W wind turbine 6 sets
Solar panel 80W 18 pcs
LED lamp 24W 16pcs
Hybrid controller 6 pcs
Environment:
• Zero emission
• Synergy with Solar and Geothermal systems
• Dual colors make it easy for bird identification in order to prevent collisions (Animal-friendly)
Installation:
• Easy Installation: System can be assembled within one hour
• No welding
• Single or multiple unit connection for bigger power production
• Easy connection with PV systems
Design:
• Gearless design: no need to replace worn-out or broken gear
• Brushless: motor brushes making high failure items results in regular replacements
• Bearing-free design: no need to lubricate or to replace worn-out bearings
• Magnetic levitation design: reduces rotational resistance to enhance power generation as well as prolong the turbine life.
• No yaw or furling mechanism required: allows for peak power output at any wind speed
• No cogging torque for cutting-in at low wind speed
• Direct-drive: Extends product life
• Blades can start rotating at very low wind velocity of 2.2 mph (1 m/s)
• Space-saving, aerodynamic airframe
• Heavy duty and industrial level construction
Wind Solar Hybrid Street Light System With Doulbe LED Lamps
Control:
• Intelligent control system has automatic protective functions to lower rotational speed in case of so strong wind as hurricane
• Real-time remote monitoring system can monitor and acquire data and equipment performance
Application
The wind solar power system for advertising usually is far away from city, and city power is not available. Green power is the ideal power to lighting up your brand in the dark.
Specification
|
Rated power
|
Approx. 300Wh at 13 m/s (26 mph)
|
|
Swept Area
|
0.8 m2
|
|
Height / Diameter
|
1.23/1.09 m
|
|
Weight
|
27 kg
|
|
Shipping Dimensions
|
1160 x 520 x 790 mm 56 kg
|
|
Startup Wind Speed
|
1 m/s (2.6 mph)
|
|
Voltage
|
12, and 24 V AC
|
|
Turbine Controller
|
Smart Wind $ solar hybrid controller
|
|
Body
|
Permanent mold cast aluminum
|
|
Blades
|
(7) Injection-molded aluminum
|
|
Alternator
|
Permanent maglev generator
|
|
Overspeed Protection
|
3 phases short-circuit braking control
|
|
Survival Wind Speed
|
65m/s
|
|
Mount
|
Inner diameter 80MM 140mm outer diameter
|
|
Wind Speed Operating Range
|
1-15 m/s (8-49 mph)
|
|
Optimum Wind Speed Range (RPM)
|
8-10 m/s ( 750-800RPM)
|
Why to choose TYPMAR wind turbine ?
The CXF series of maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple subjects to have the following features:
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
