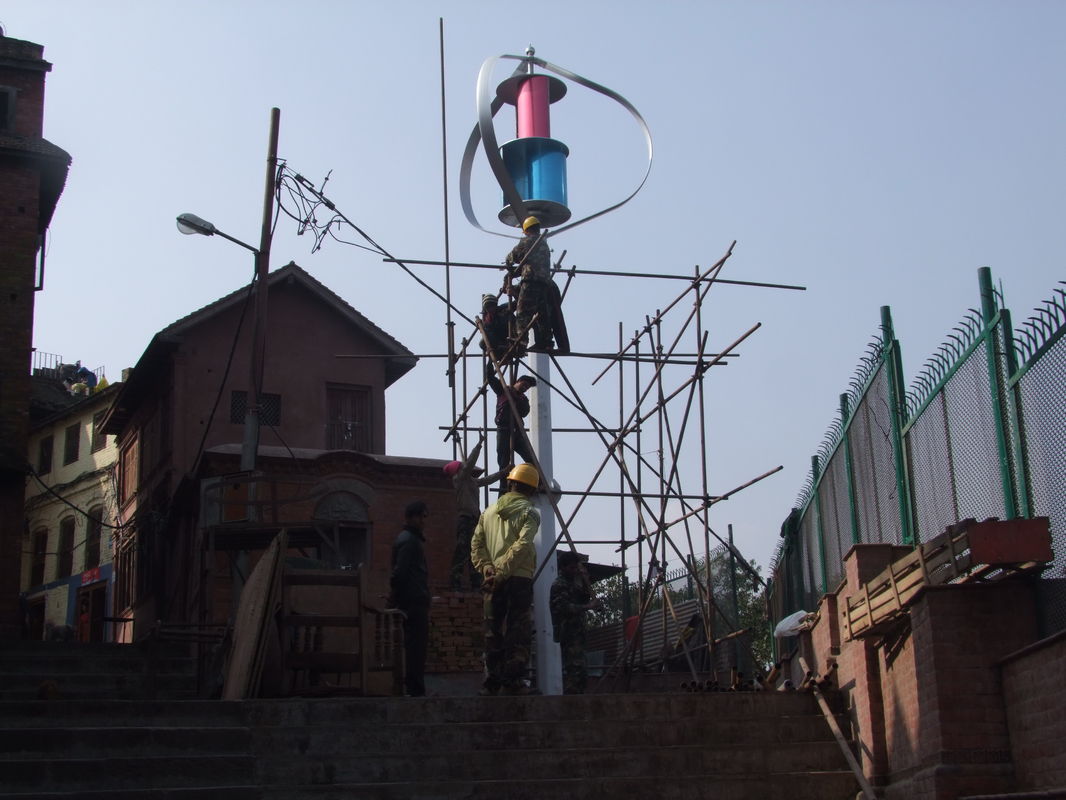

House Small Maglev Wind Power Generator Rooftop stainless steel
1. Brief to 3kw wind turbine
CXF-3000 Vertical Axis Maglev Wind Turbine is a breakthrough in wind power technology. It’s Typmar who made magnetic levitation technology used in wind turbine for the first time. This creates a milestone and fulfills important breakthrough in the history of small and medium wind turbine development. The maglev technology improves the efficiency of wind power 35% compared to traditional horizontal axis wind turbine. The innovative wind generators have been widely used for Telecoms Base Receiver Station (BTS) as well as residential and commercial applications.
1, No Vibration-Means you can mount anywhere including on your house roof
2, No Noisy-Means quiet enjoyment of living
3, No Frication-Means the equipment lasts longer due to no wear & tear
4, Low start-up wind speed-Means higher average power output
5, No rust - use Aluminum Alloy material, technical treatment by DACROMAT
6, No fade- after anti-oxidation treatment
7, Strong adaptability-means can be used for land, beaches, weak offshore wind
Regional power, lighting etc.
2. Maglev Wind Power Generator Feature:
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
3. Specifications
| Items |
CXF3000-Ⅰ |
CXF3000-Ⅱ |
| Rated power |
3000W |
3000W |
|
Dimension
(Height/Diameter)
|
3530/Ø3600 |
Ø4160/4570 |
| Weight |
415KG |
680 kg |
| Blade material |
Aluminum Alloy |
Aluminum Alloy |
| Blade quantity |
3 |
3 |
| Swept area ㎡ |
7.02 |
7.72 |
| Min starting wind speed |
1.5m/s |
1.5m/s |
| Cut-in wind speed |
3.5m/s |
3.5m/s |
| Rated wind speed |
13m/s |
13m/s |
| Cut-off wind speed |
15m/s |
15m/s |
| Survival wind speed |
60m/s |
60m/s |
| Generator type |
AC,3Phases |
AC,3Phases |
| Controller Output Voltage |
48V |
96V |
| Controller Braking System |
3-phase short circuit by NFB brake |
3-phase short circuit by NFB brake |
| Ambient Temperature |
-40～50 ℃ |
-40～50 ℃ |
| Noise |
Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db |
4. Application :
The practical appication of the Maglev Wind Power Generator as below:
1) Power supply for ships
2) Electricity for agriculture and fishery
3) Landscape education of wind energy and electricity
4) Wind-hydraulic generation system
5) Public electricity supply for building
6) Romote area
7) Independent house
8) Correspondence base
9) Street light
10) Electricity supply for community
11) Traffic signals
12) Independent military island
