Maglev Wind Power Generator 1KW 48V , Off Grid Home Use System In Estonia
Product Details:
| Place of Origin: |
China |
| Brand Name: |
TYPMAR |
| Certification: |
CE, ISO9001, IEC61400 |
| Model Number: |
CXF-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
Negotiable |
| Packaging Details: |
wooden case |
| Delivery Time: |
10~25 days |
| Payment Terms: |
L/C, T/T, Western Union, MoneyGram |
| Supply Ability: |
1000 sets |
Detailed Product Description
| Off Grid: |
Yes |
Wind Turbine: |
1KW 48V |
| Hybrid With Solar Panel: |
Yes |
Application: |
Home Use |
| Rated Wind Speed: |
12m/s |
Maglev Wind Power Generator 1KW 48V , Off Grid Home Use System In Estonia
Quick Detail
1. Generate your own power - Power independence
2. Integrated Controller – easy for installation
3. Optional Remote Monitoring system – Monitoring remotely your installation
4. No need city power, no need cable wiring
5. Flexible installation
6. Maintanence free
Description

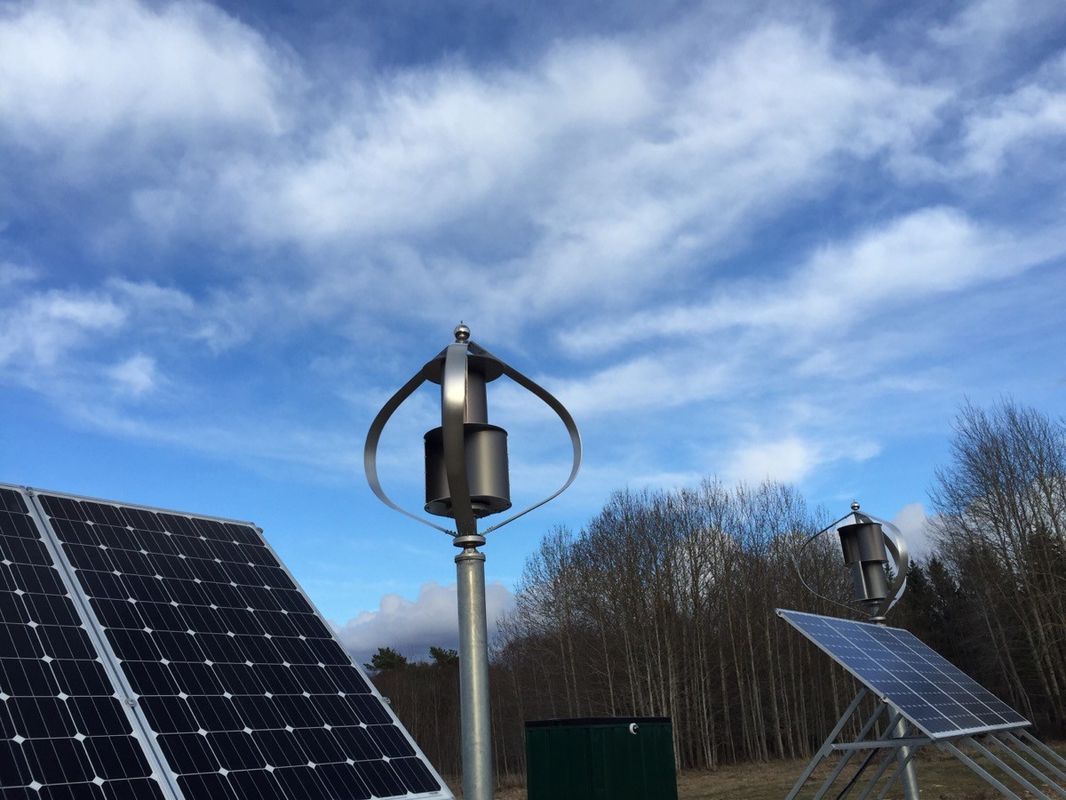

Here's the configuration for the system:
Maglev wind power generator 1KW 48V 2 set
Hybrid Controller 1000W 48V 2 pcs
Mono Solar Panel 150W 18V 8 pcs
Inverter 4KW 48V 1 pc
Dump load 2 pcs
GEL batteries 200Ah 12V 8 pcs
People on island are in extreme power shortage. Everyday they have to face power cut several times and the keeping on increasing fuel for their gensets. To solve the problem, TYPMAR sales engineer have tight cooperation with the power supply party. And have built a testing site on the island. Now the system have been working for nearly two years.
TYPMAR off grid wind generator's inverter is the core part of the whole system, the inverter is developed specially for TYPMAR series wind turbine according to CXF series wind turbine special features with an optimized power curve pre-written into inverter and smart over-voltage braking protection, which offers a reliable combination of high efficiency, easy-installation, high wind protection and grid-failure protection.
Off-Grid Inverter Features:
● Over 97% Max. efficiency
● Ultra wide input voltage range
● Precise MPPT algorithm
● Compact and light design for one-person easy installation
● Wind/PV individual output
● Full loading output prior for wind output
● Programmable power curve for wind, PV MPPT algorithm, Max. efficiency
● High reliability for topology circuit, quality components and multi-protection
● RS485, WiFi, GPRS interface
● Convenient remote monitoring function
● Brake protection function
Specification
| Maglev Wind Power Generator Items | CXF1000 |
| Rated power | 1000W |
| Dimension (Height/Diameter) | Ø2200mm / 2400mm |
| Weight | 180 kg |
| Blade material | Aluminum Alloy |
| Blade quantity | 3 |
| Swept area ㎡ | 3.6 |
| Min starting wind speed | 1.5 m/s |
| Cut-in wind speed | 3.5m/s |
| Rated wind speed | 13m/s |
| Cut-off wind speed | 15m/s |
| Survival wind speed | 60m/s |
| Generator type | AC,3Phases |
| Controller Output Voltage | 48V |
| Controller Braking System | 3-phase short circuit by NFB brake |
| Ambient Temperature | -40～50 ℃ |
| Noise | Less than 40dB |
| Annual Energy Production (@ 5 m/s) | about 750 kWh |
Advantages
HAWT AND MVAWT |
Item | Horizontal axis (HAWT) | Vertical axis (EML) |
Start wind speed | High(≥3m/s) | Low(1m/s) |
Wind conditions required | Require stable wind direction | Any wind direction |
Encountered turbulence | Reduce the efficiency | Efficiency is not affected |
Power stability | Change by wind direction | Without any wind effect |
Noise | Large(45 decibels or more) | Low noisy (because there is no mechanical friction) |
Product appearance | Normal | Beautiful |
Installation height | High(need to avoid the terrain turbulence) | Low(not afraid of turbulence) |
Installation location | Just in open area like suburb | Any location |
Generator material | Plastic or composite | metal |
Structure strength | Poor (easy to broken) | High(double strengthen arm) |
Resistance of wind speed | Poor(about 40 m/s) | High |
