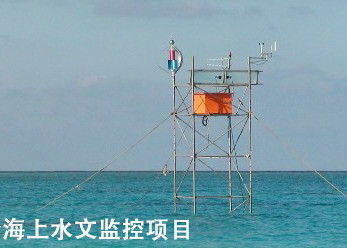

Corrosion Resistant Magnetically Levitated Wind Turbine for Marine Hydrographic Monitoring
Product Details:
| Place of Origin: |
Shenzhen, China |
| Brand Name: |
TYPMAR |
| Certification: |
CE IEC ISO9001 |
| Model Number: |
CXF-300w , 600w , 1000w , 3000w |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Packaging Details: |
Plywood |
| Delivery Time: |
15 days |
| Payment Terms: |
T/T, L/C, Western Union |
| Supply Ability: |
1000 sets per month |
Detailed Product Description
| Blade Material: |
Alluminum Alloy |
Color: |
Red And Bule As Well As Customerized Color |
| Product Name: |
Maglev Wind Power Generator |
Applications: |
Marine Enviroment |
Corrosion Resistant Magnetically Levitated Wind Turbine for Marine Hydrographic Monitoring
1. Maglev Wind Power Generator Enviroment adaption:
There are special requirements for sea enviroment. CXF series of maglev wind turbines undergoes special surface treatment for robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy as well as anticorrosive surface treatment.
2. Maglev Wind Power Generator Specifications:
Items | CXF300 | CXF600 | CXF1000 | CXF3000-Ⅰ | CXF3000-Ⅱ |
Rated power | 300W | 600W | 1000W | 3000W | 3000W |
Dimension
(Height/Diameter) | Ø1080/1240 | Ø1320/1540 | Ø2200/2400 | 3530/Ø3600 | Ø4160/4570 |
Weight | 27 | 50 kg | 180 kg | 415KG | 680 kg |
Blade material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
Blade quantity | 3 | 3 | 3 | 3 | 3 |
Swept area ㎡ | 0.76 | 1.27 | 3.6 | 7.02 | 7.72 |
Min starting wind speed | 1m/s | 1.3m/s | 1.5 m/s | 1．5m/s | 1.5m/s |
Cut-in wind speed | 2.7 m/s | 2 7m/s | 3.5m/s | 3．5m/s | 3.5m/s |
Rated wind speed | 12m/s | 12m/s | 13m/s | 13m/s | 13m/s |
Cut-off wind speed | 15m/s | 15m/s | 15m/s | 15m/s | 15m/s |
Survival wind speed | 65m/s | 65m/s | 60m/s | 60m/s | 60m/s |
Generator type | AC,3Phases | AC,3Phases | AC,3Phases | AC,3Phases | AC,3Phases |
Controller Output Voltage | 12V/24V | 24V/48V | 48V | 48V | 96V |
Controller Braking System | 3-phase short circuit by NFB brake | 3-phase short circuit by NFB brake | 3-phase short circuit by NFB brake | 3-phase short circuit by NFB brake | 3-phase short circuit by NFB brake |
Ambient Temperature | -40～50 ℃ | -40～50 ℃ | -40～50 ℃ | -40～50 ℃ | -40～50 ℃ |
Noise | Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db |
3. Applications:
Off grid applications for marine enviroment.
4. Features:
The CXF series of Maglev Wind Power Generator undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple subjects to have the following features:
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
