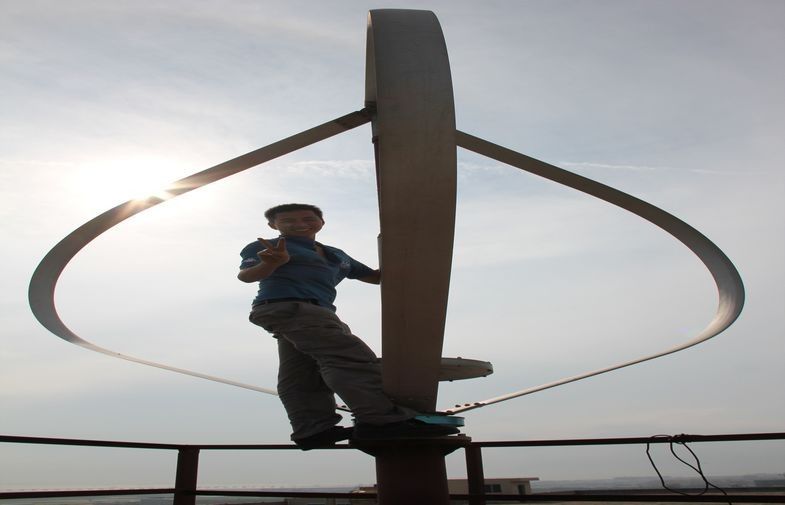

Off grid System 3000W Maglev Wind Power Generator for Island , Farms , Village
Description
People on island are in extreme power shortage. Everyday they have to face power cut several times and the keeping on increasing fuel for their gensets. To solve the problem, TYPMAR sales engineer have tight cooperation with the power supply party. And have built a testing site on the island. Now the system have been working for nearly two years.
Here's the configuration for the system:
Maglev wind power generator 3000W 5 sets
Special Designed Controller 5 pcs
Inverter 1 pc
Dump load 5 pcs
Gel batteries 24pcs
Our off-grid inverter is a transformers wind grid tie inverter which has a good response for wind speed change and a wide input voltage range from 30V to 540V The maximum input current is 20A DC and maximum output power is 3300W.
TYPMAR off grid wind generator's inverter is the core part of the whole system, the inverter is developed specially for TYPMAR series wind turbine according to CXF series wind turbine special features with an optimized power curve pre-written into inverter and smart over-voltage braking protection, which offers a reliable combination of high efficiency, easy-installation, high wind protection and grid-failure protection.
Quick Detail
Off-Grid Inverter Features:
● Over 97% Max. efficiency
● Ultra wide input voltage range
● Precise MPPT algorithm
● Compact and light design for one-person easy installation
● Wind/PV individual output
● Full loading output prior for wind output
● Programmable power curve for wind, PV MPPT algorithm, Max. efficiency
● High reliability for topology circuit, quality components and multi-protection
● RS485, WiFi, GPRS interface
● Convenient remote monitoring function
● Brake protection function
Specification
Items |
CXF3000-A |
CXF3000-B |
Rated power |
3000W |
3000W |
Dimension |
3530/Ø3600 |
Ø4160/4570 |
Weight |
415KG |
680 kg |
Blade material |
Aluminum Alloy |
Aluminum Alloy |
Blade quantity |
3 |
3 |
Swept area ㎡ |
7.02 |
7.72 |
Min starting wind speed |
1.5m/s |
1.5m/s |
Cut-in wind speed |
3.5m/s |
3.5m/s |
Rated wind speed |
13m/s |
13m/s |
Cut-off wind speed |
15m/s |
15m/s |
Survival wind speed |
60m/s |
60m/s |
Generator type |
AC,3Phases |
AC,3Phases |
Controller Output Voltage |
48V |
96V |
Controller Braking System |
3-phase short circuit by NFB brake |
3-phase short circuit by NFB brake |
Ambient Temperature |
-40~50 ℃ |
-40~50 ℃ |
Noise |
Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db |
Application
The maglev wind power generator not only applied to islands, but also common homes, farms, Independent military island and villages.
